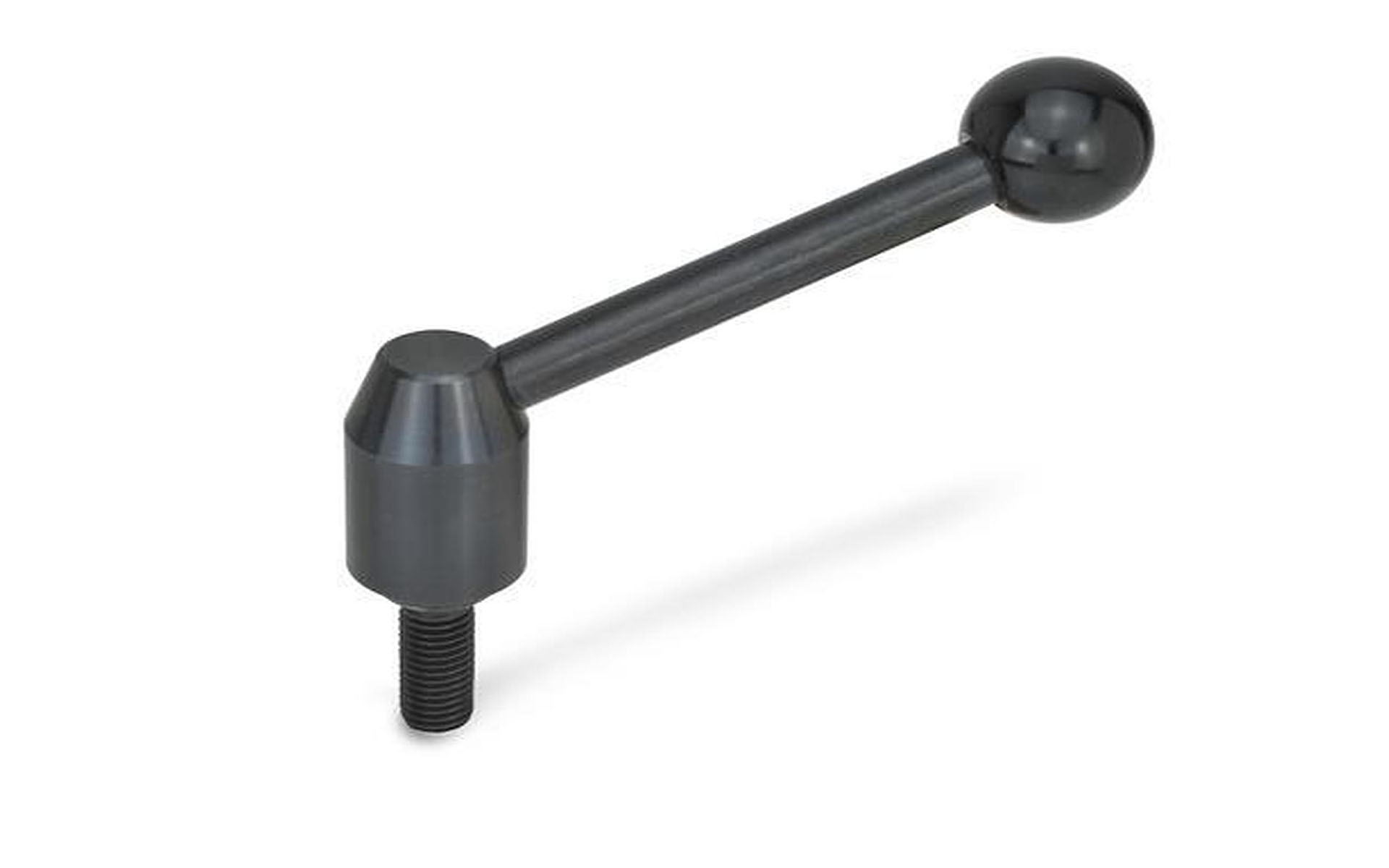

Adjustable clamping lever, lever angled, screw, steel

€14.92*

Prices excl. tax plus shipping costs

Anschlussgewinde d2
Durchmesser d1
Gewindelänge l1
Product number: 17000332008

Available, delivery time: 1-3 days

All versions
Product information "Adjustable clamping lever, lever angled, screw, steel"
Adjustable clamping levers are used when the clamping range is limited or a specific clamping position is required. The threaded insert is detachably connected to the hub by a serration. By lifting (pulling) the lever hub, the serration is released and the lever can be pivoted to the most favorable clamping position. When released, the hub engages again automatically.
Form: E, Hebel schräg
Hersteller: Ganter
X-Line: 1
d1 (mm): 21
d2: M 8
d3 (mm): 13,5
d4 (mm): 8
d5 (mm): 20
h1 (mm): 33,5
h3 (mm): 1
h4 (mm): 59
h5 (mm): 4
l1 (mm): 12
l2 (mm): 75
l3 (mm): 70
