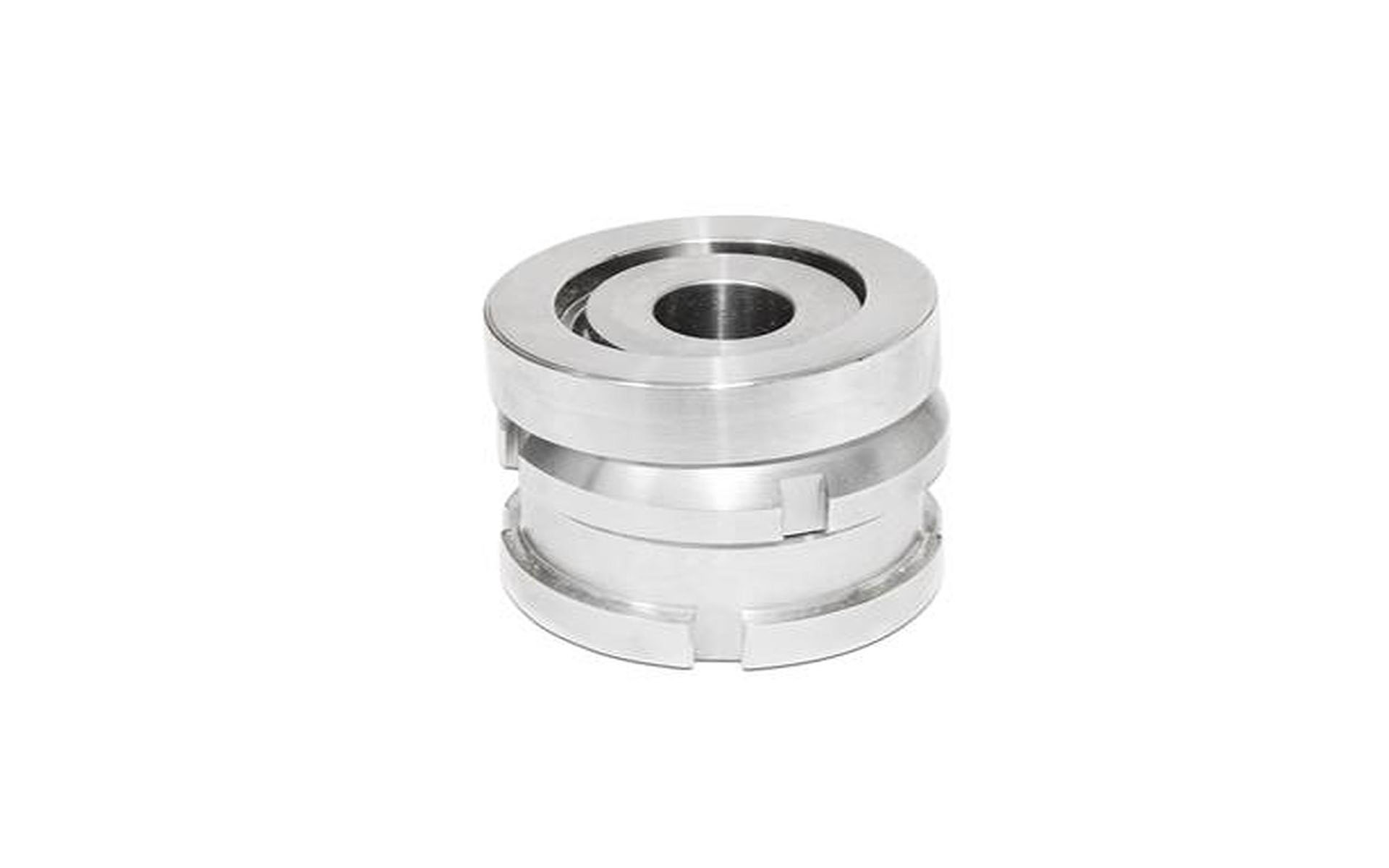

Edelstahl-Ausgleich-Elemente mit Kugelscheibe

€49.39*

Prices excl. tax plus shipping costs

Außendurchmesser d1
Bohrungsdurchmesser d2
Höhe h1
Product number: 05001018001
All versions
Product information "Edelstahl-Ausgleich-Elemente mit Kugelscheibe"

Stainless steel compensation elements are used for levelling, adjusting and connecting. The spherical washer enables exact mounting with non-parallel bearing surfaces up to an angle of inclination of ˜ 4°. The elements consist of a screw upper part and a nut lower part. Via a fine thread a stepless and precise adjustment as well as readjustment by means of a hook wrench DIN 1810 is possible. A locking ring serves as a height limit for the max. adjustment height.

Hersteller: Ganter
Statische Belastbarkeit F (kN): 27,1
Statische Belastbarkeit F2 (kN): 20,26
X-Line: 1
d1 (mm): 25
d2 (mm): 6,6
d3: M 15 x 1
für Schraube: M 6
h1 (mm): 22
h2 (mm): 50
h3 (mm): 15
Material: Stainless steel
