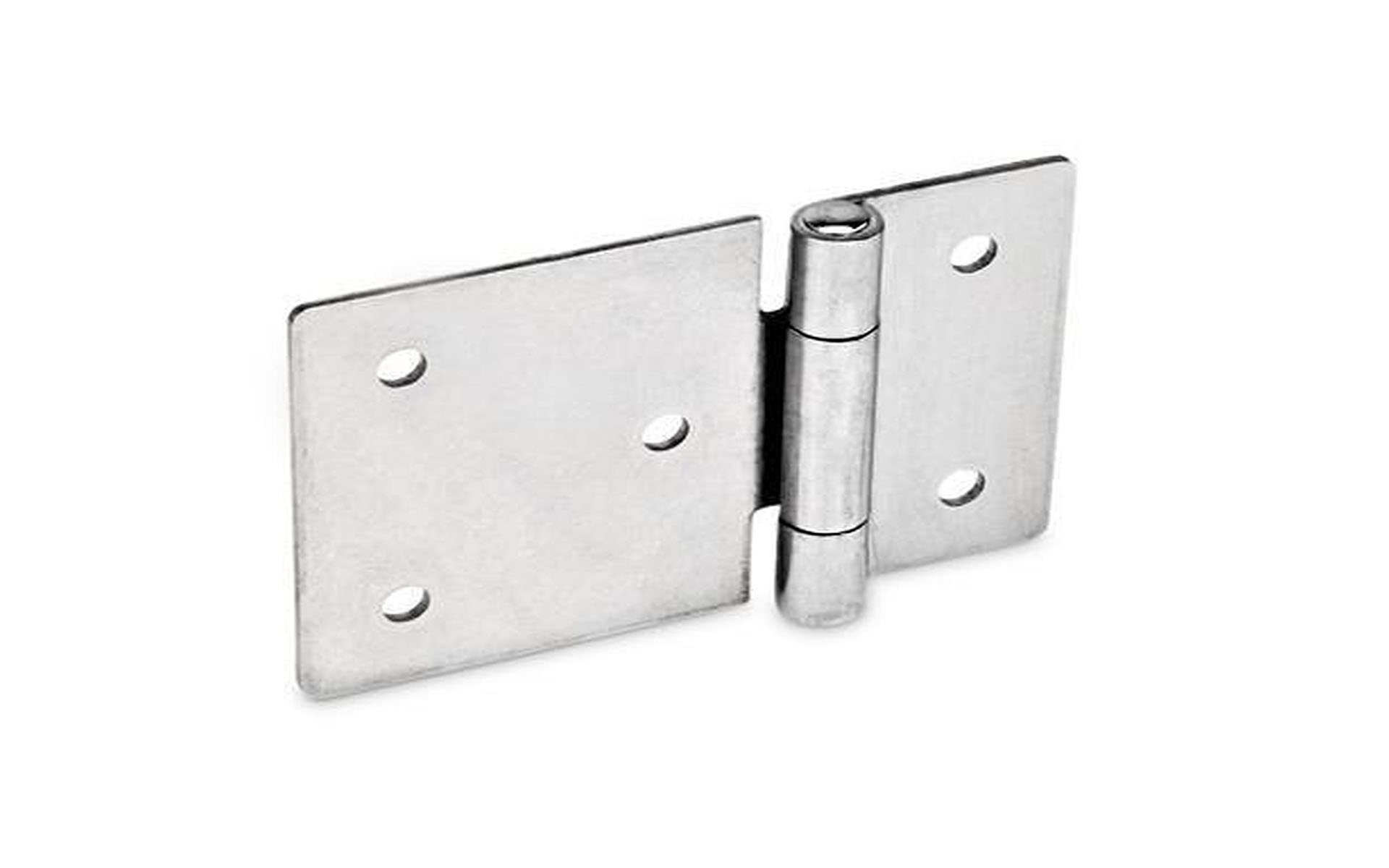

Edelstahl-Blechscharniere, horizontal verlängert
Product number:
05000931002
Available, delivery time: 1-3 days
Product information "Edelstahl-Blechscharniere, horizontal verlängert"
Stainless steel sheet hinges are available in many different designs and are suitable for light to medium duty applications. In addition to welding, the form A can also be fastened by customer-installed hole patterns.
| Form: | B, mit Durchgangsbohrungen |
|---|---|
| Hersteller: | Ganter |
| X-Line: | 1 |
| d1 (mm): | 6 |
| d2 (mm): | 5,2 |
| l1 (mm): | 100 |
| l2 (mm): | 50 |
| m1 (mm): | 80 |
| m2 (mm): | 30 |
| m4 (mm): | 15 |
| m5 (mm): | 40 |
| s (mm): | 2 |
| x2 (mm): | 100 |
| Material: | Stainless steel |
