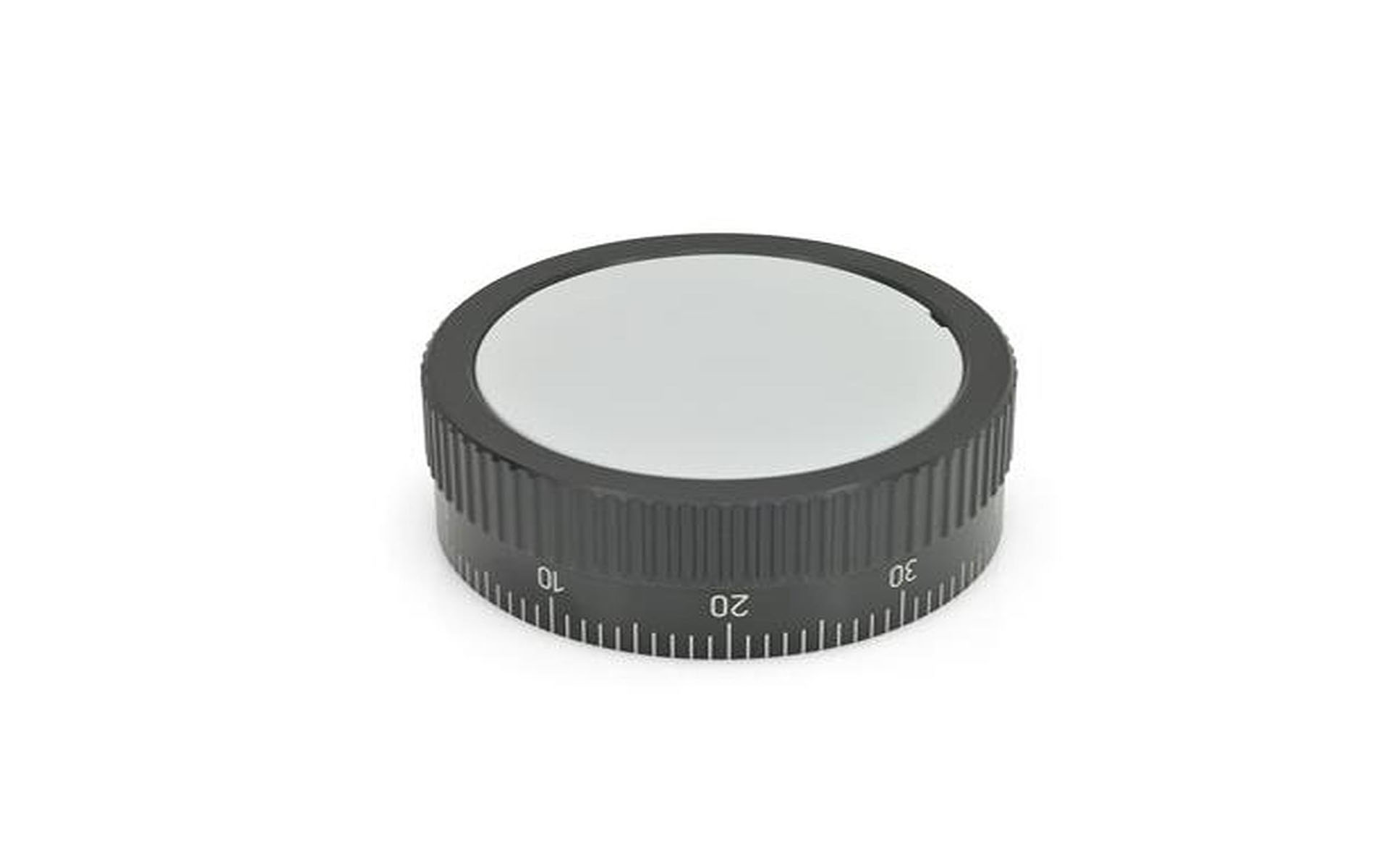

Feed wheels with standard scale without handle

€23.81*

Prices excl. tax plus shipping costs

Handraddurchmesser d1

52 mm

62 mm

Product number: 18000697002

Available, delivery time: 1-3 days

All versions

Product information "Feed wheels with standard scale without handle"

Feed wheels are used for adjustment processes with low torque. The coarse adjustment can be made using the rotating cylinder knob (finger feed), the fine adjustment using the knurled ring. The collet chuck design enables easy "setting" of feed wheels with a scale. The scale is absolutely abrasion-resistant and easy to read, as the engraving process creates a contrast between the "aluminium-coloured" digits and characters and the black anodized surface. In addition to the standard scale (mark S), these feed wheels can also be supplied with any desired scale. The line pattern, number sequence, number position and number sequence of a scale are shown in a clear ordering diagram.

B (mm):	13
Bohrungskennzeichnung:	Z, mit Spannzange
Form:	A, ohne Griff
Hersteller:	Ganter
Norm:	nicht angegeben
Standard-Skala:	S, mit Skala 0...90, 100 Teilstriche
X-Line:	1
Zylinderknopf D (mm):	14
d1 (mm):	62
d2 (mm):	10
d3 (mm):	60
d4 (mm):	47
d5 (mm):	49,5
l1 (mm):	23
l2 (mm):	17
l3 (mm):	21
r (mm):	20,5
