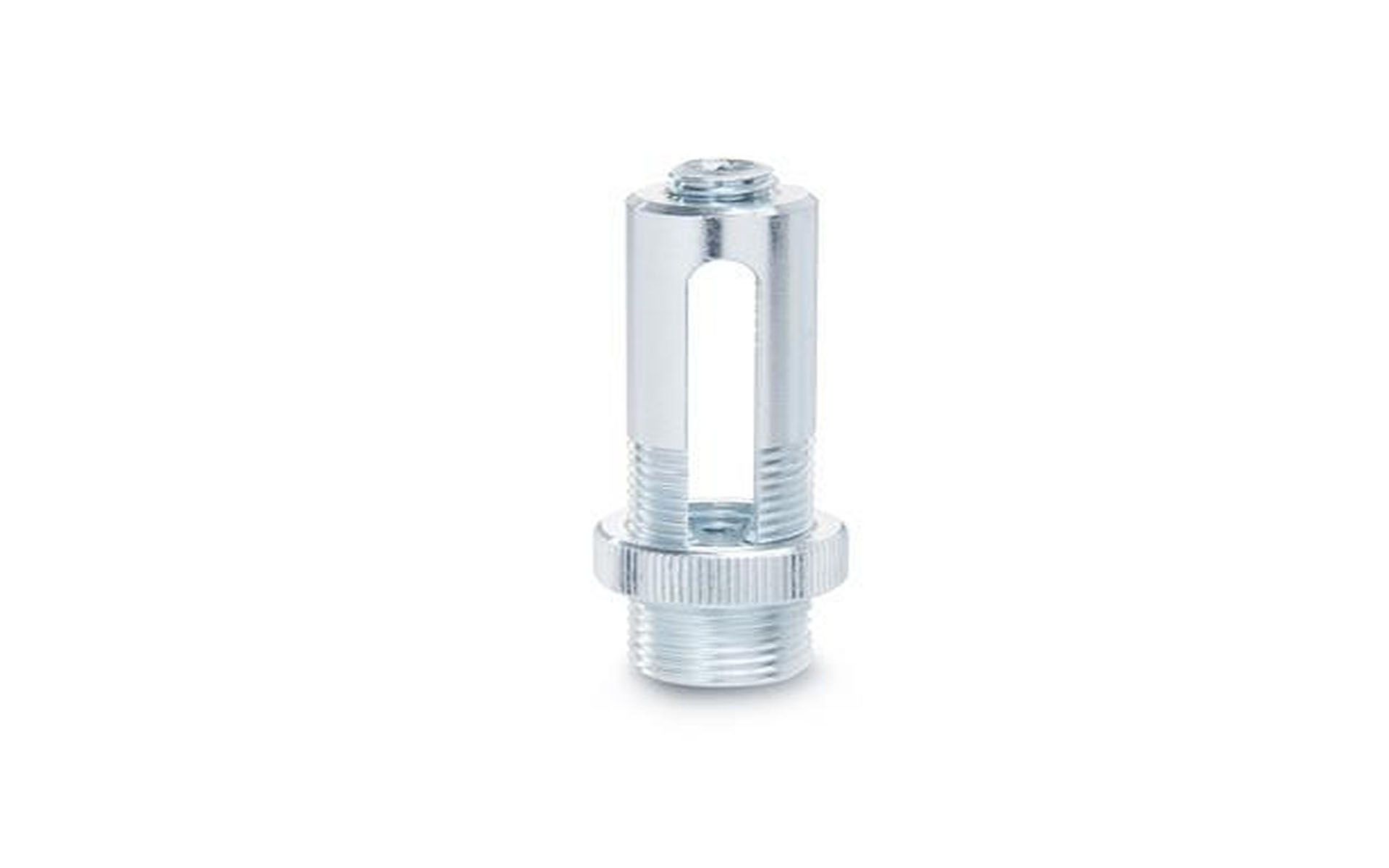

Holder for pressure screws for quick release

€19.59*

Prices excl. tax plus shipping costs

Durchmesser d1
Product number: 17000310004

Available, delivery time: 1-3 days

All versions
Product information "Holder for pressure screws for quick release"
Holders for pressure screws have been developed for various quick-release clamps in the "solid clamping arm" version. The holder can be moved on the clamping arm and adjusted in height. It is fixed in the desired position with the clamping screw. The d2 thread is used to accommodate a wide variety of pressure screws, spring elements and the like.
B (mm): 7,3
Hersteller: Ganter
W (mm): 5
X-Line: 1
d1 (mm): 20
d2: M 8
d3: M 20 x 1,5
d4 (mm): M 5
d5 (mm): 27
für Schnellspanner (mm): 330
h1 (mm): 15, 25
h2 (mm): 10
l1 (mm): 57
l2 (mm): 15
l3 (mm): 7
s1 (mm): 22
s2 (mm): 7
