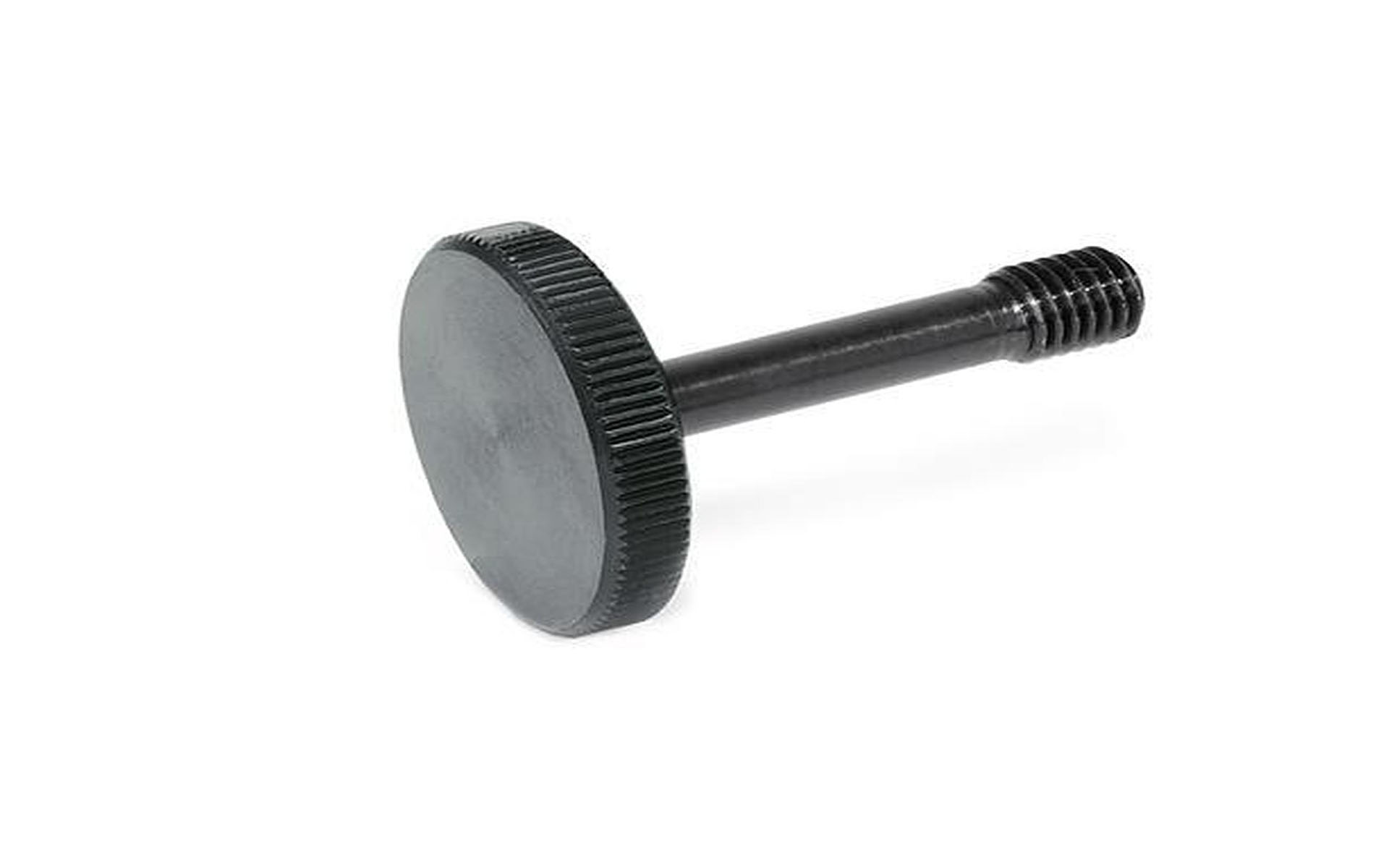

Knurled screws with thin shank to prevent loss

€1.63*

Prices excl. tax plus shipping costs

Gewinde d1
l1
Product number: 18000751002

Available, delivery time: 1-3 days

All versions
Product information "Knurled screws with thin shank to prevent loss"

Knurled head screws can be "loss-proofed" in a simple way, e.g. in a cover, by means of the thin shank d4. For this purpose, a thread d1 must be provided on both sides instead of a normal through/threaded hole, if necessary with a corresponding clearance hole d5. Depending on the design and clamping thickness a1 ... a3 of the cover, a choice can be made between the design variants shown above.

Hersteller: Ganter
Norm: nicht angegeben
X-Line: 1
a1 (mm): 04. Jun
a2 (mm): 6 - 10
a3 (mm): 10 - 12
d1: M 4
d2 (mm): 16
d3 (mm): 8
d4 (mm): 3,2
d5 (mm): 4,5
h (mm): 5,5
k (mm): 3,5
l1 (mm): 17
l2 (mm): 5
l3 (mm): 2
Material: Stahl
