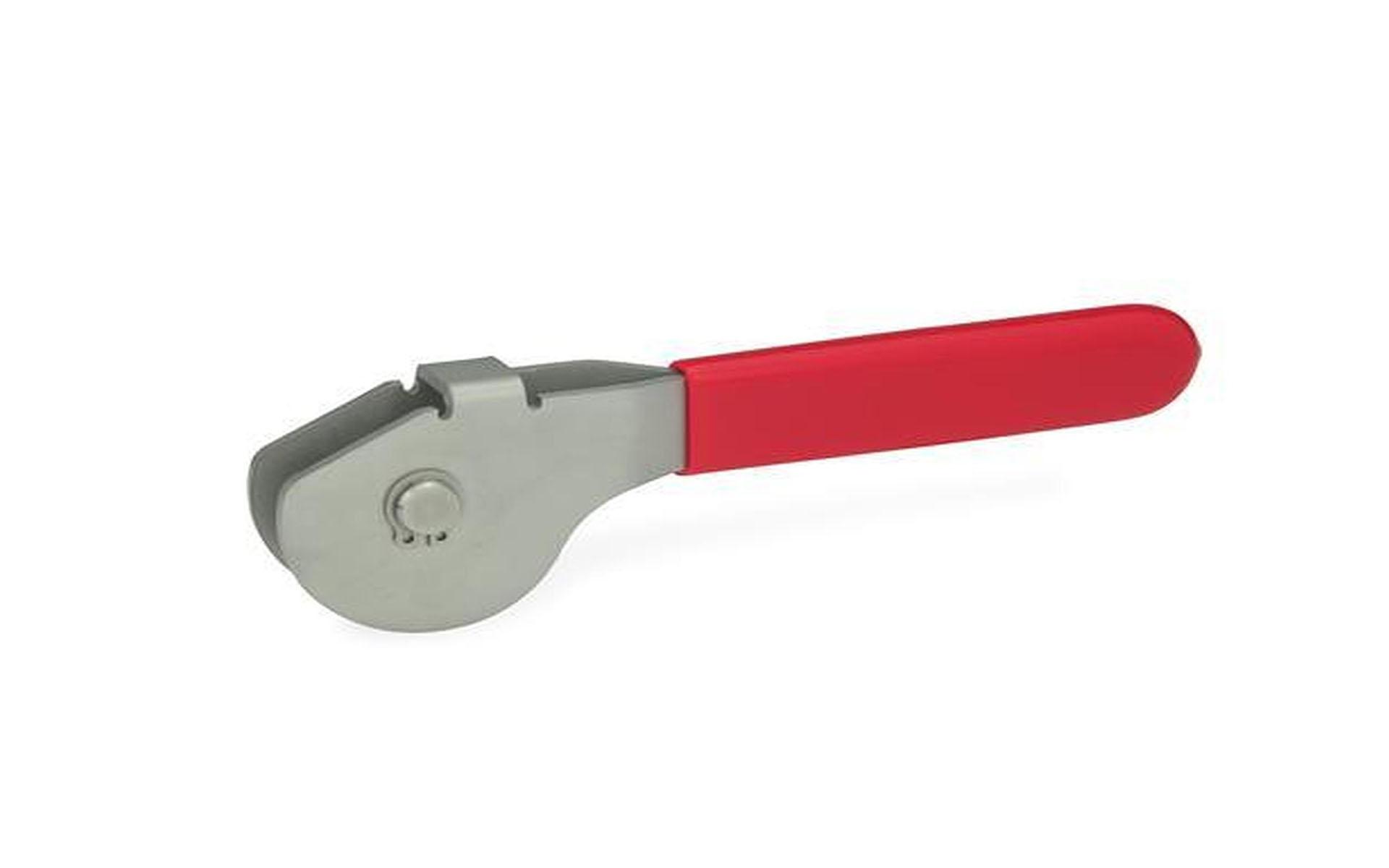

Lever with spiral eccentric, stainless steel

From €75.58*

Prices excl. tax plus shipping costs

Durchmesser d
Product number: 17000314002

Available, delivery time: 1-3 days

Product information "Lever with spiral eccentric, stainless steel"
Stainless steel levers with spiral eccentric are used for adjusting and clamping. The spiral has the advantage that the clamping effect is the same in every angular position and is self-locking. The dimension b2 is matched to the head height of DIN 444 eyebolts.
D (mm): 12
Hersteller: Ganter
L (mm): 157
X-Line: 1
b1 (mm): 20
b2 (mm): 14
h1 (mm): 31,81
h2 (mm): 21
h3 (mm): 18
r1 (mm): 28
r2 (mm): 34,29
r2 - h3 (mm): 16,29
s (mm): 6,29
x1: Edelstahl
