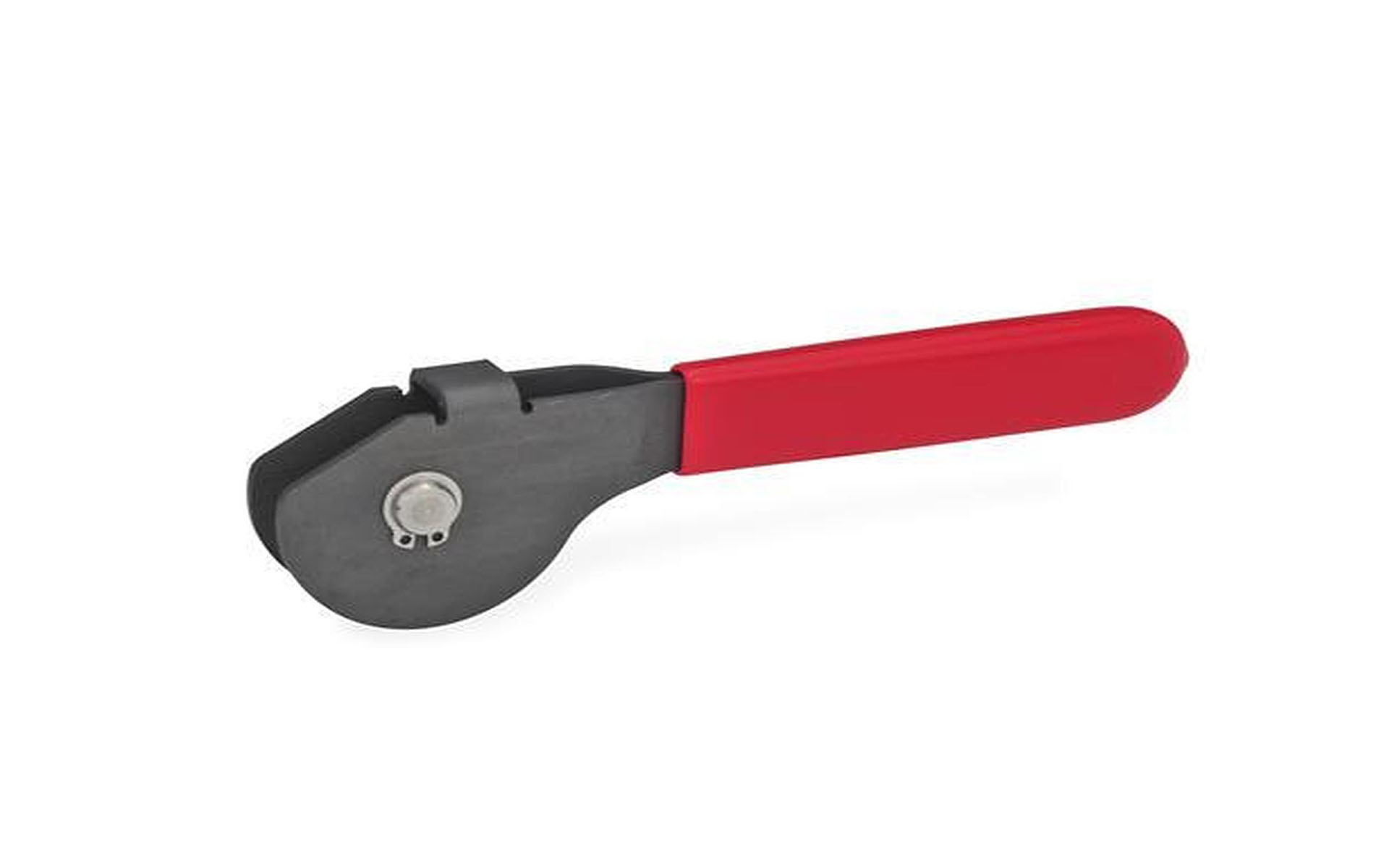

Lever with spiral eccentric, steel

€36.51*

Prices excl. tax plus shipping costs

Durchmesser d
Product number: 17000396003

Available, delivery time: 1-3 days

All versions
Product information "Lever with spiral eccentric, steel"
Levers with spiral eccentrics are used for adjusting and clamping. The advantage of the spiral is that it is self-locking and the clamping effect is the same in every angular position. The dimension b2 is matched to the head height of eyebolts DIN 444 or eye nuts.
D (mm): 8
Hersteller: Ganter
L (mm): 114
X-Line: 1
b1 (mm): 13
b2 (mm): 9
h1 (mm): 19,54
h2 (mm): 14
h3 (mm): 12
r1 (mm): 17,2
r2 (mm): 21,7
r2 - h3 (mm): 9,07
s (mm): 3,87
