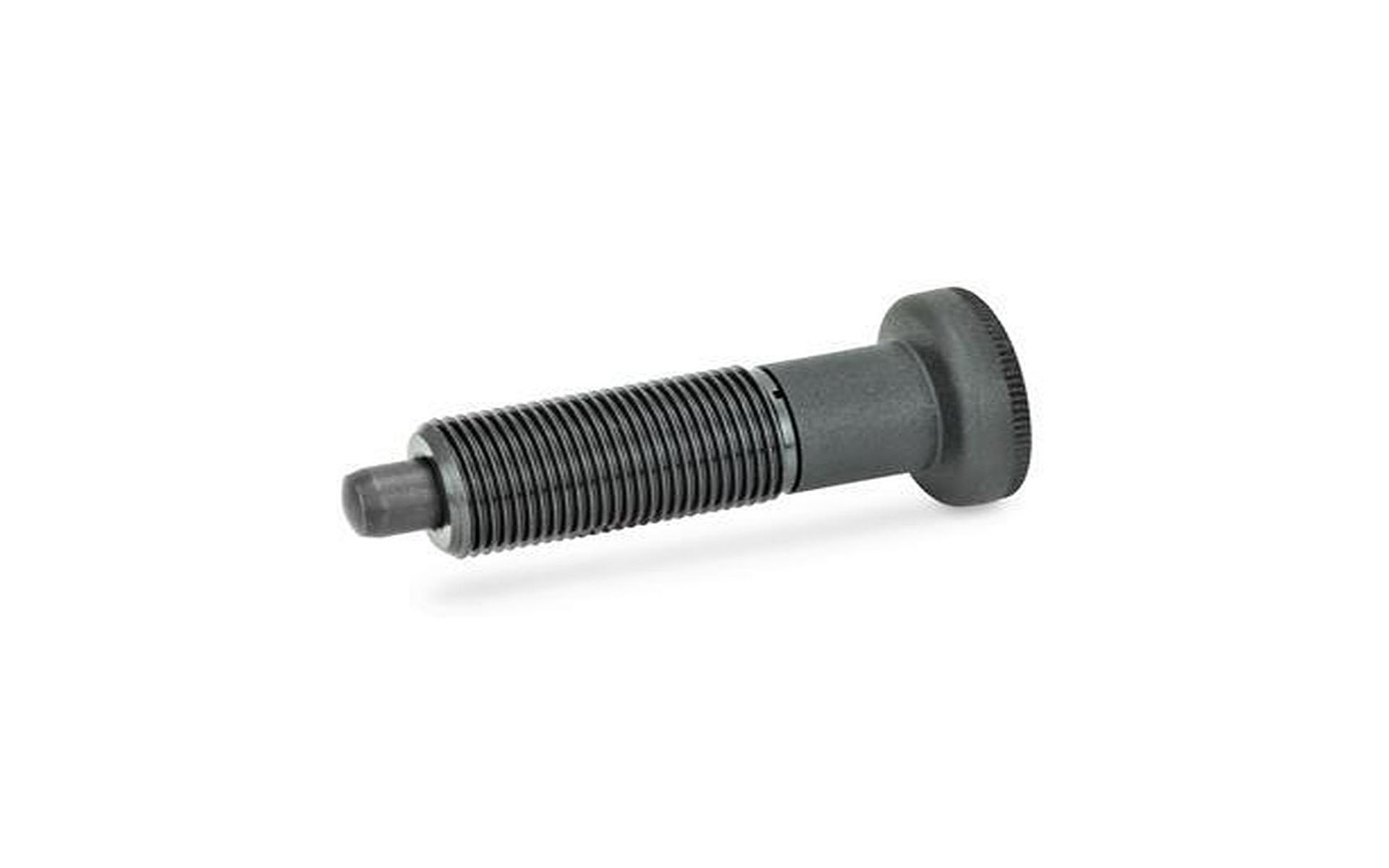

Rastbolzen / Kunststoff-Knopf
Available, delivery time: 1-3 days
Indexing plungers in the form G or GK with threaded pin are intended for applications where a special knob is required or the indexing plunger is not actuated by hand in the usual way. The indexing plungers are designed in such a way that they can also absorb axial forces in the end position (pressure spring is "on block"). For applications where these are significantly higher than the tensile force applied by the operator (form G), indexing plungers are preferable. The screwdrivers available as accessories shorten the installation time and facilitate counter-holding when locking. The screwdriver is inserted laterally between the knob and the guide and then engages in the slot of the guide.
| Federdruck Anfang (N): | 7 |
|---|---|
| Federdruck Ende (N): | 17 |
| Form: | G, ohne Kontermutter, mit Gewindezapfen |
| Hersteller: | Ganter |
| X-Line: | 1 |
| d1 (mm): | 5 |
| d2: | M 10 x 1 |
| d3 (mm): | 21 |
| d4 (mm): | M 5 |
| l1 (mm): | 45 |
| l2 (mm): | 5 |
| l3 (mm): | 22 |
| l4 (mm): | 6 |
| l5 (mm): | 4,5 |
