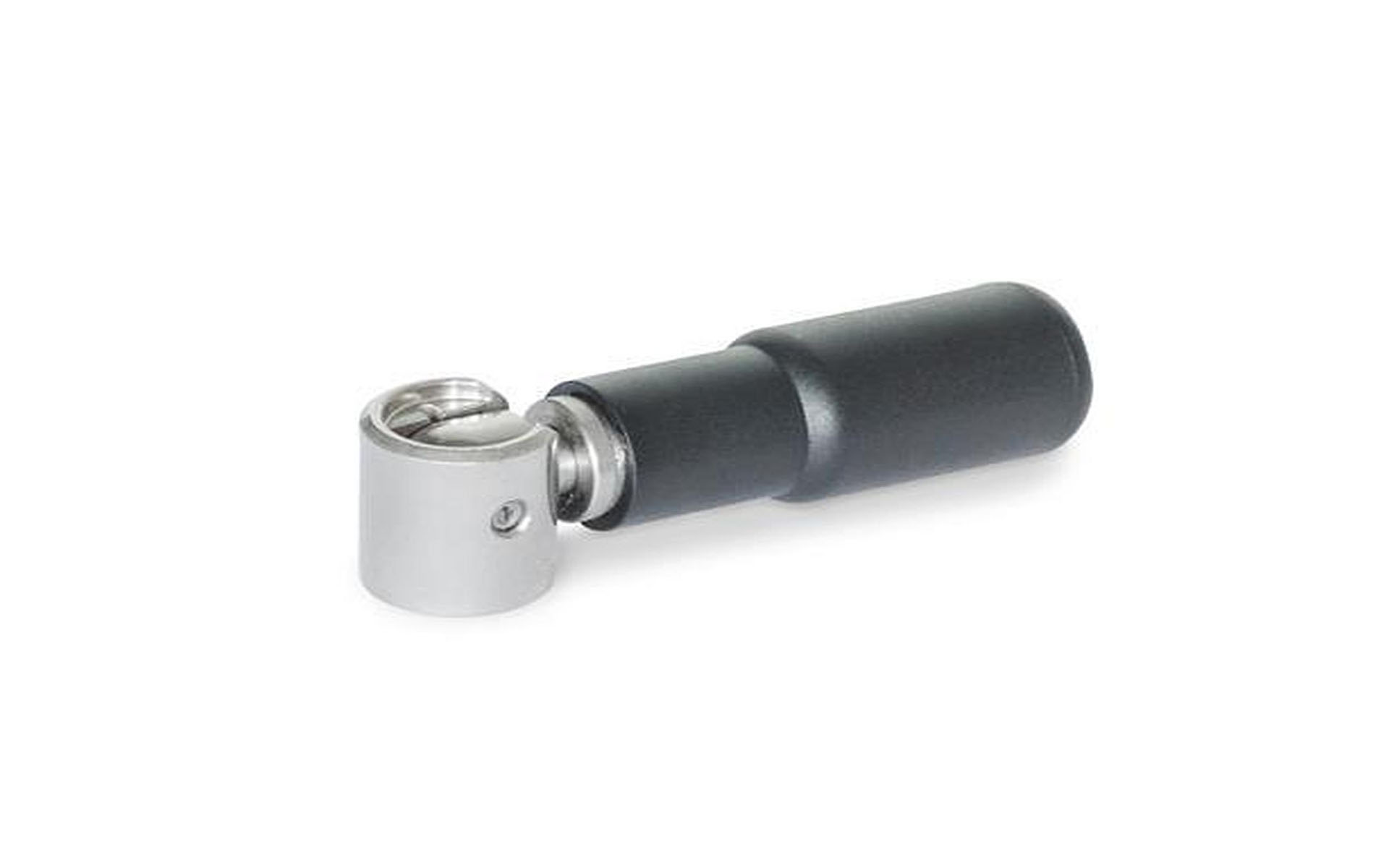

Safety folding handles, stainless steel folding mechanism

From €24.85*

Prices excl. tax plus shipping costs

Griffdurchmesser d1

22 mm

24 mm

25 mm

Product number: 18000067001

Available, delivery time: 1-3 days

Product information "Safety folding handles, stainless steel folding mechanism"

Reversible handles are used on cranks and handwheels, for example, if the handle must not be locked in the operating position. To bring the handle into this position, it must first be pivoted through 90° against a torsion spring. It is then pushed in an axial direction against the spring force into a catch. The handle can then be cranked while maintaining the axial force. After "releasing", the compression spring pushes the handle out of the catch and the torsion spring swivels it back again.

Hersteller:	Ganter
Norm:	nicht angegeben
X-Line:	1
d1 (mm):	22
d2:	M 6
d3 (mm):	20
l1 (mm):	73
l2 (mm):	82
l3 (mm):	22
l4 (mm):	13
l5 (mm):	5,5
Material:	Kunststoff
