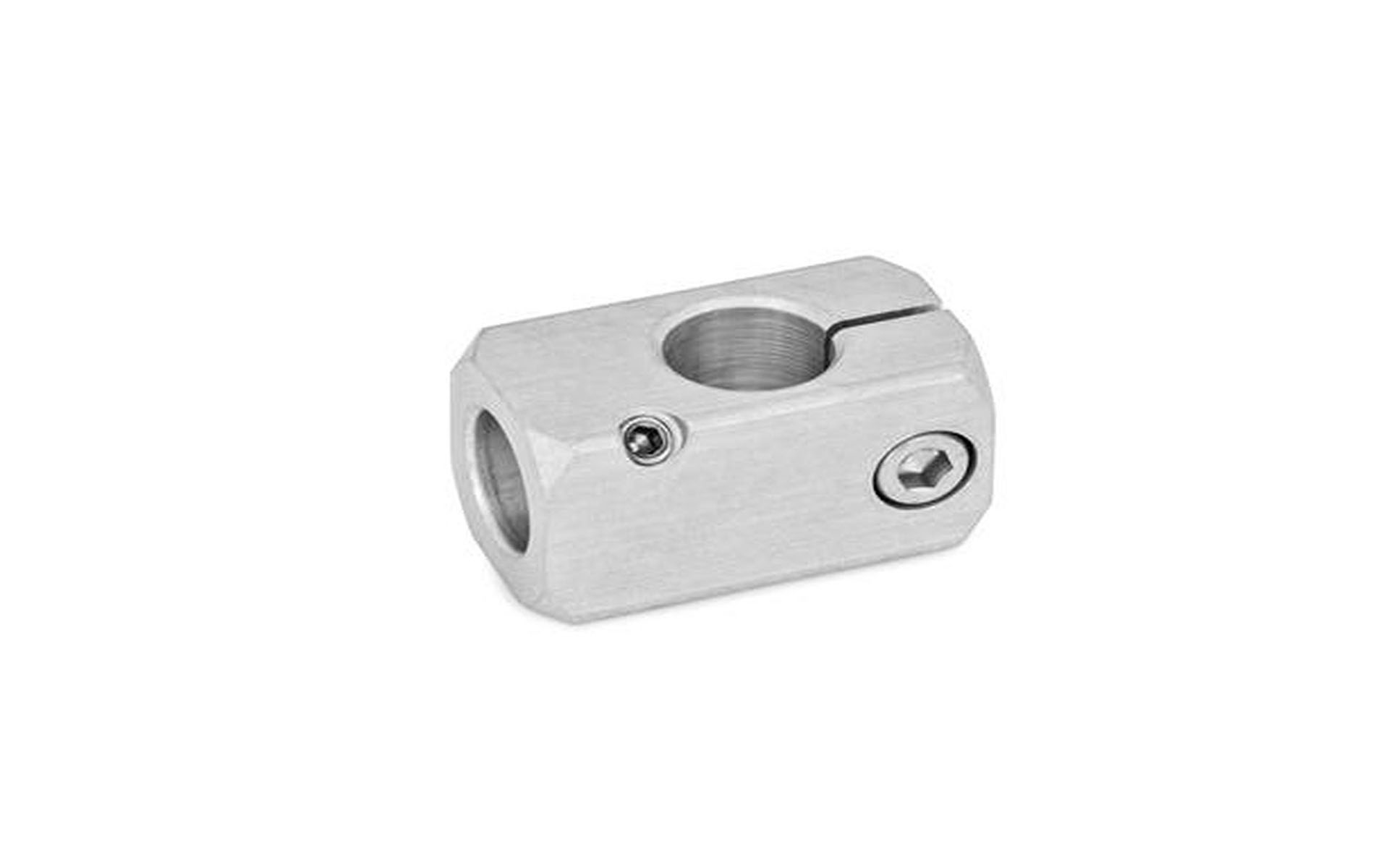

T-clamp bracket with hole, aluminum

€7.44*

Prices excl. tax plus shipping costs

Bohrung d1
Oberfläche
Product number: 08000131006

Available, delivery time: 1-3 days

All versions
Product information "T-clamp bracket with hole, aluminum"
The T-clamp holders (form W) serve as an alternative to cross-clamp holders when high angular forces are required. The standard version of the clamping screw on the clamping thread d4 is a hexagon socket head screw DIN 912. It can be replaced by a clamping lever set (see dimensions table for order designation).
Form: A, mit Bohrung
Hersteller: Ganter
Oberfläche: MT, matt, gleitgeschliffen
X-Line: 1
d1 (mm): B 8
d2 (mm): B 8
d4 (mm): M 4
d5: M 4
k (mm): 16
l1 (mm): 16
l2 (mm): 13
l3 (mm): 26
l4 (mm): 5,5
t (mm): 8
