Telescopic slide over extension 038 | up to 100 kg | Schock Metall CLASSIC
Cross-section: 19 x52,6 mm | Length: 300 up to 550 mm | Hold-in, bracket with insert pins
Product number:
07000060002
Available, delivery time: 1-3 days
Product information "Telescopic slide over extension 038 | up to 100 kg | Schock Metall CLASSIC"
Telescopic Slides Schock Metall® Over-extension Series 036
Item price and sale per piece
WARNING: Slide consists of a left and a right slide. You need one left and one right telescopic slide for a drawer.
Item No. Schock 036.17100 - 036.17105
Description Telescopic Slide SM-036B
- Over-extension
- Load capacity up to 70 kg/pair
- Retention mechanism
- Brackets with insertion pins
Material:
- Slides made of hot-dip galvanized steel
- Ball cages made of galvanized steel
- Balls made of hardened C-steel
Temperature Range:
- Operating temperature +10°C to +40°C
- Storage and transport temperature -20°C to max. +80°C
Notes:
The retention mechanism secures the guide in the closed position.
The insertion pins allow for quick and tool-free installation and removal of the drawer, for example, for cleaning purposes.
The specified load capacities are maximum values for a vertically mounted telescopic slide pair with even load distribution using all designated mounting positions.

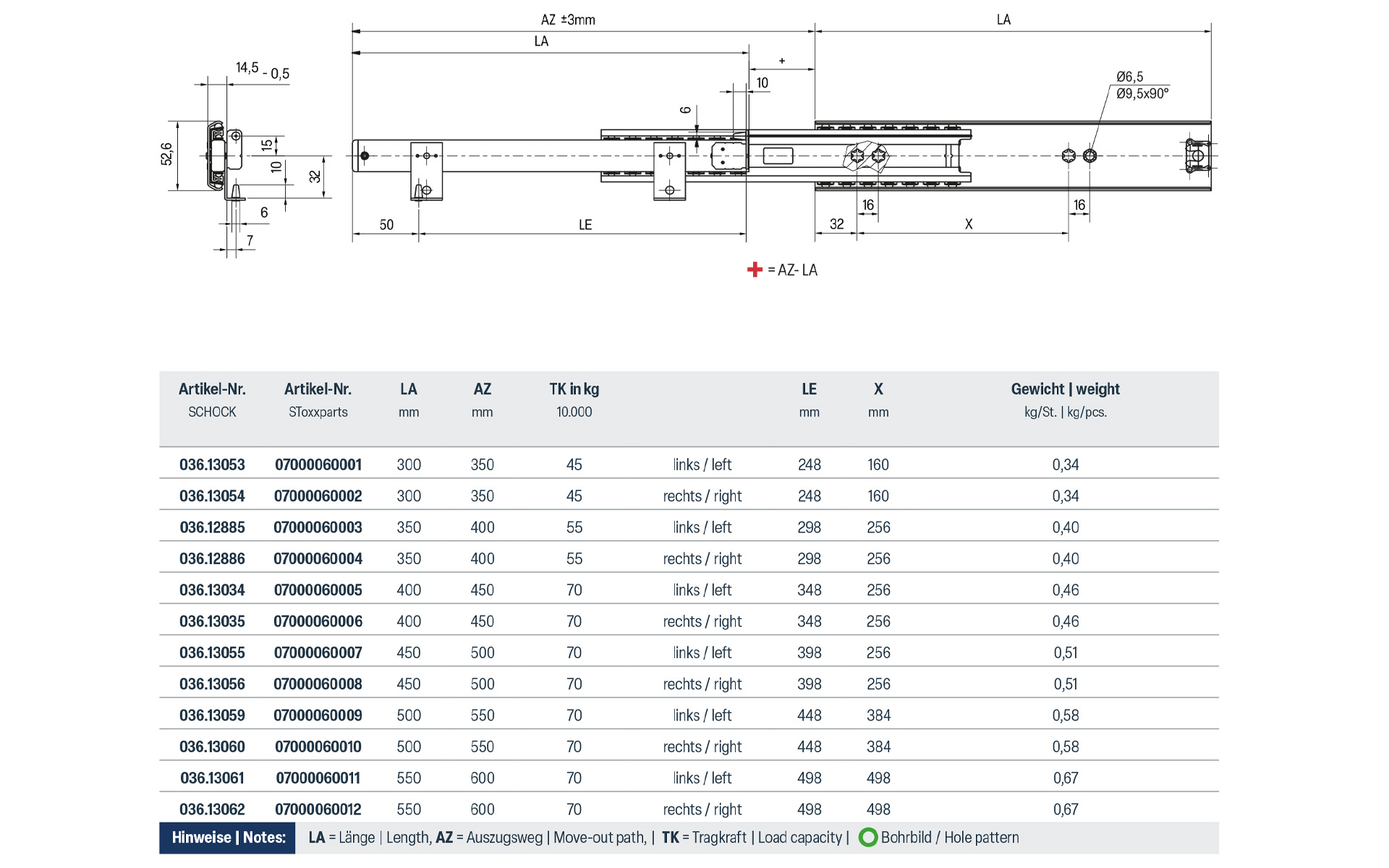

| Slide length (mm): | 300 |
|---|---|
| Load capacity (kg): | 45 |
| Cross section (mm): | 14,5 x 52,6 |
| Extract type: | Over extension |
| Travel path (mm): | 350 |
| Function: | Hold-in |
| Special feature: | Bracket with insertion pins |
| Material: | Galvanized surface |
| Version: | right slide |
